National Guard Products 522N 36"

copy to clipboard

National Guard Products 522N 36" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 522N 36" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount
More from National Guard Products
Price: $134.51 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 522N 36" Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount
  • Automatic Door Bottom with Neoprene Insert
  • Heavy Duty
  • Length: 36"
  • Width: 15/16"
  • Heigth: 2"
  • Max Drop: 7/8"
  • Mortise required: 1" x 2 1/8"
  • Material: Aluminum
  • Finish: Mill Finish
  • Insert : Black Neoprene
  • Mortise Mount
  • Mounting: #4 x 5/8" SMS furnished
  • Use with a threshold for maximum sealing capability
  • Nylon brush recommended for carpet applications where no threshold is provided
  • Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
  • Clear anodized end caps furnished standard. DKB end caps available - please specify
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 45 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 45 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested
  • ANSI/BHMA Certified

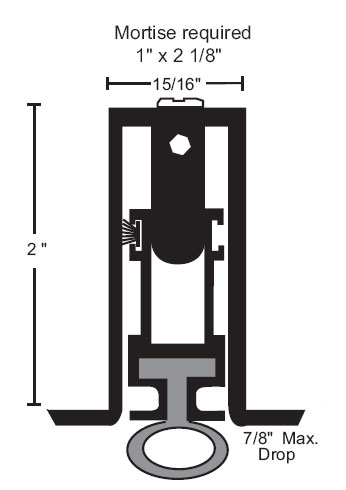

Dimensions
Questions and Answers
Q: How long do these sweeps usually last with regular use?
A: Decades.
Q: How do I get a new gasket for a 30" sweep?
A: The gasket alone from the National Guard Products 522N Mill Finish Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Mortise Mount is not available as a standalone product and it is because the manufacturer states that the reinsertion of the neoprene gasket into the metal housing it is held captive in is not something that can be done in the field nor in the factory for that matter without the use of a specialized machine.

The manufacturer does make available the entire drop bar assembly however in my experience the cost of the replacement drop bar assembly quite nearly approaches the cost of an entire new unit.

While replacing the drop bar assembly is not a difficult task I would urge you to consider purchasing an entire new unit so as to save yourself the trouble of having to completely disassemble your automatic door bottom and insert a new drop bar assembly.

The replacement drop bar assembly can be reviewed here:

Click Here
