National Guard Products 420NA-35-7-8
National Guard Products 420NA-35-7-8

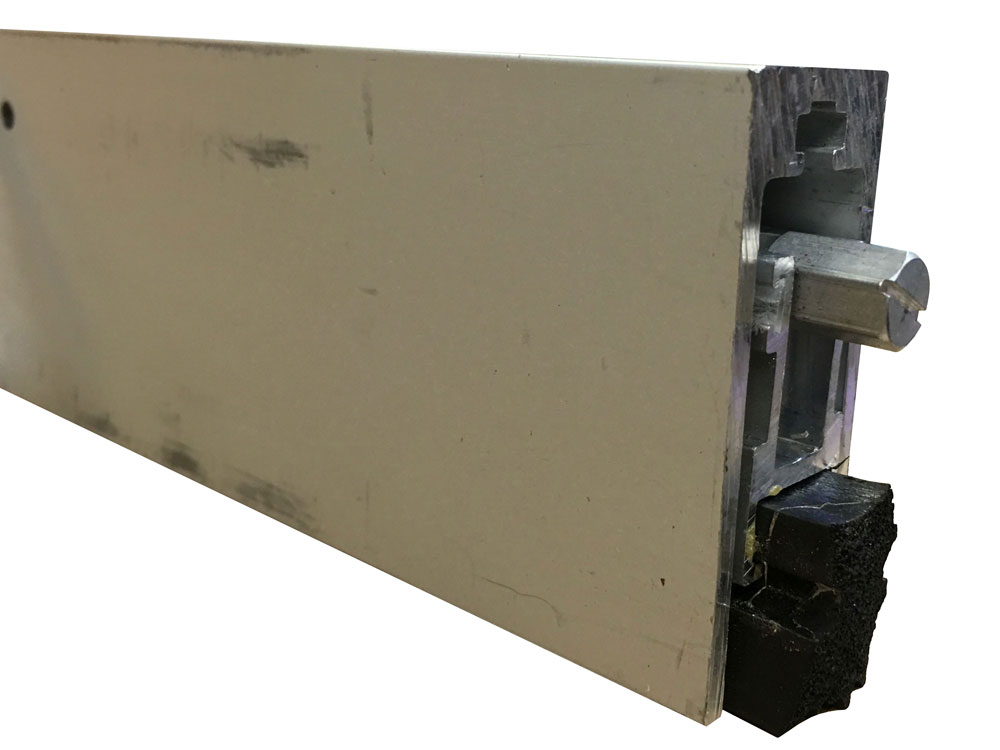

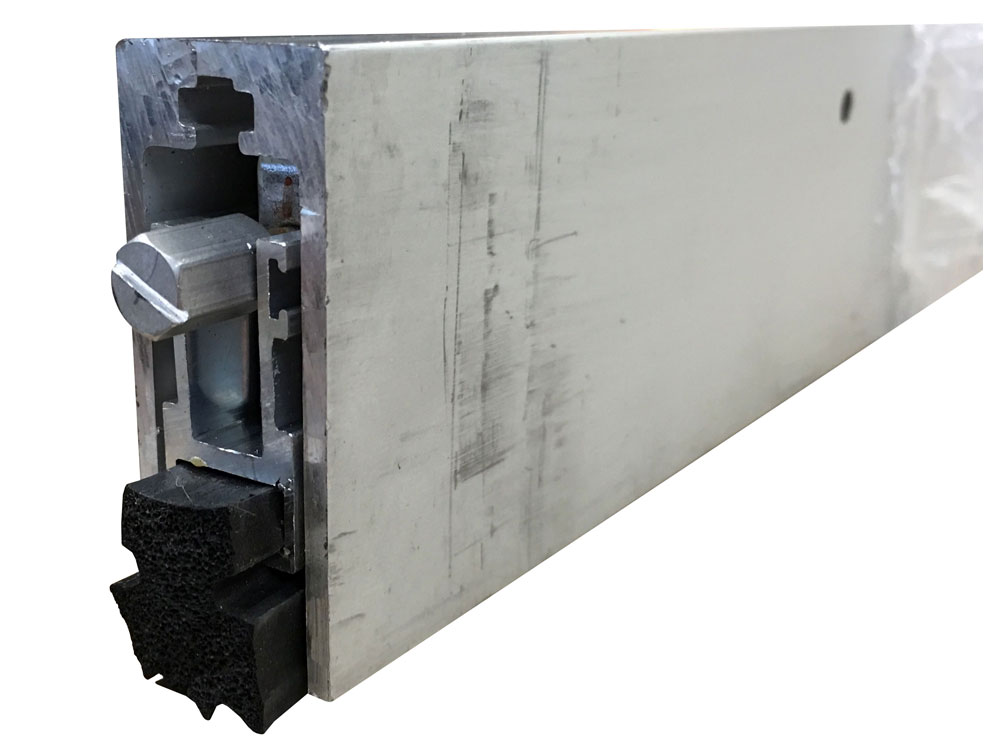

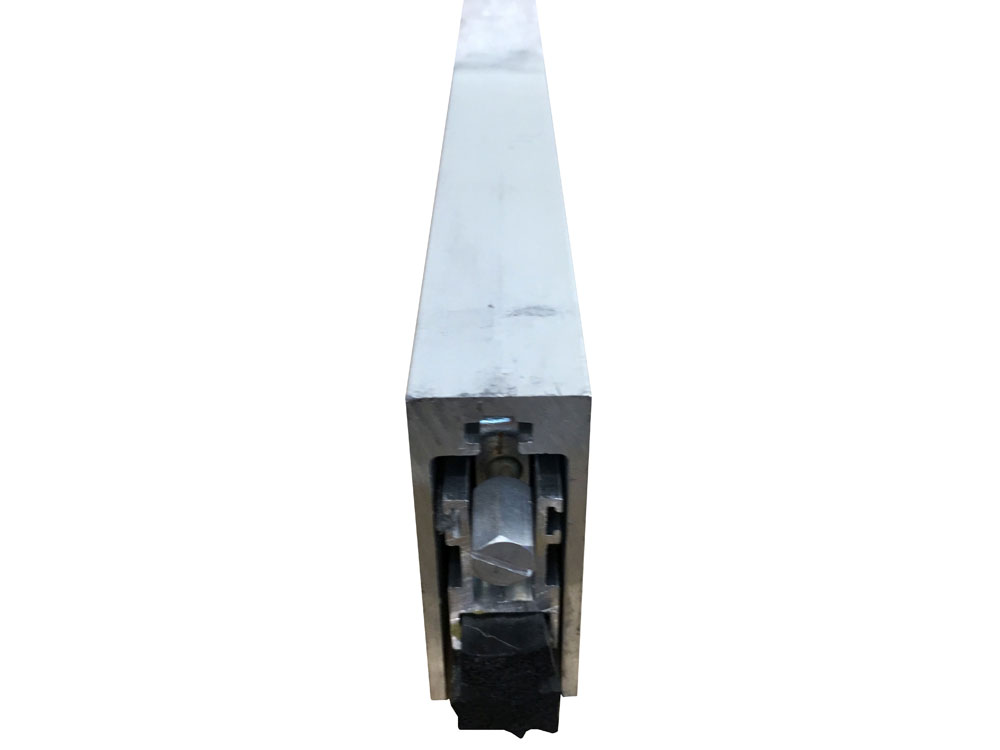

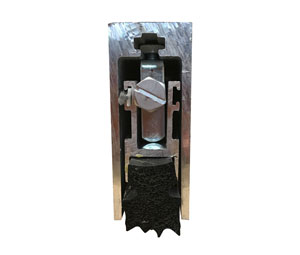

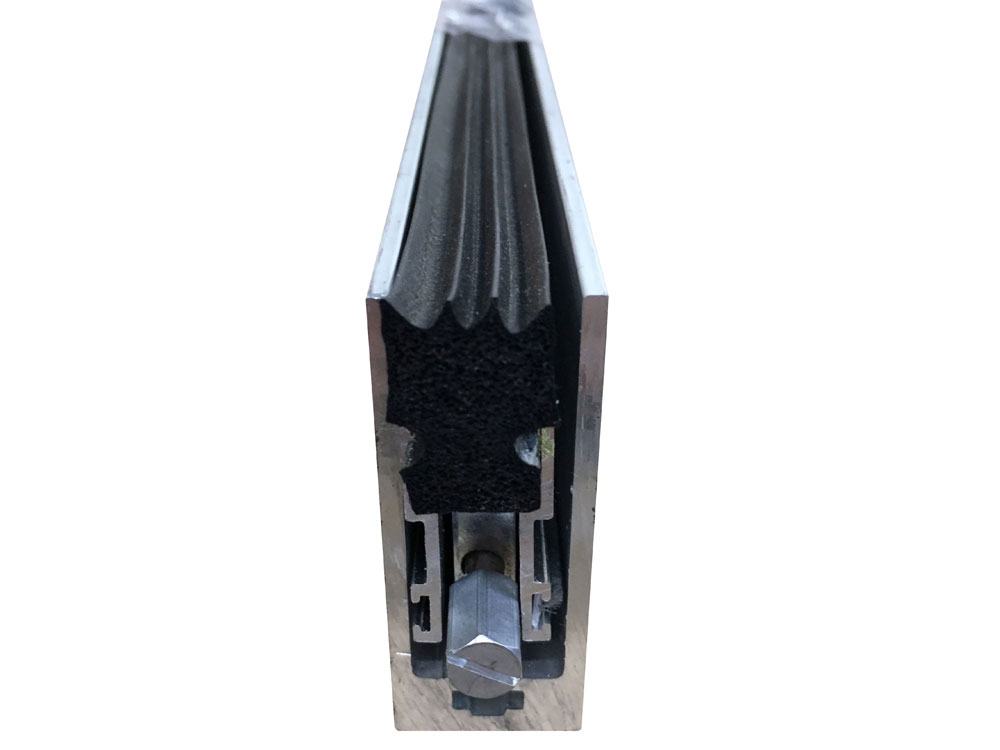

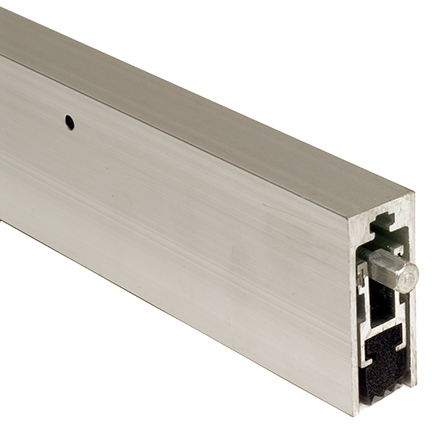

National Guard Products 420NA-35-7-8 35-7/8" Clear Anodized Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Surface Mount
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
159.19 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $187.50 worth of product from National Guard Products to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
National Guard Products 420NA-35-7-8 35-7/8" Clear Anodized Aluminum Automatic Door Bottom with Neoprene insert - Heavy Duty - Surface Mount
Automatic Door Bottom with Neoprene Insert
Heavy Duty

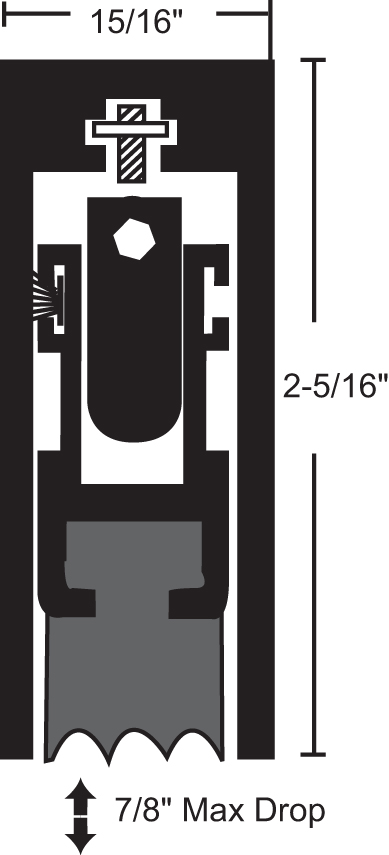

Length: 35-7/8"
Max Drop: 7/8"
Material: Aluminum
Finish: Clear Anodized
Insert : Black Neoprene
Surface Mount
Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
Very good abrasion resistance, tensile strength and memory
Flame resistant
Moisture resistant
Temperature range -20°F to 200°F
Good resistance to ozone, sunlight and aging
Mounts on push side of door
Smoke and Draft Control-UL Classified Category H
UL 10B Classified on wood doors up to 90 min.
UL 10B Classified on metal doors up to 3 hr.
UL 10C Classified on wood doors up to 90 min.
UL 10C Classified on metal doors up to 3 hr.
Acoustical Tested
Air Infiltration Tested
BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
Use with a threshold for maximum sealing capability
Nylon brush recommended for carpet applications where no threshold is provided
Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
End caps furnished standard
Lead insert available for radiation shield. For further information please contact sales
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Installation Instructions
Catalog Page
Cut Sheet
Catalog
Brochure
