National Guard Products 319EV 36"

copy to clipboard

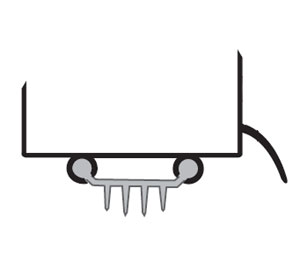

National Guard Products 319EV 36" Mill Finish Aluminum Door Shoe with Finned Vinyl insert

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
National Guard Products 319EV 36" Mill Finish Aluminum Door Shoe with Finned Vinyl insert
More from National Guard Products
Price: $22.22 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $187.50 minimum purchase of National Guard Products products or 20 business days for smaller orders.

National Guard has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
National Guard Products 319EV 36" Mill Finish Aluminum Door Shoe with Finned Vinyl insert
  • Door Shoe with Finned Vinyl Insert
  • Length: 36"
  • Holder:
    • Width: 1 3/4"
    • Heigth: 7/8"
    • Material: Aluminum
    • Finish: Mill Finish
  • Insert:
    • Material: Finned Vinyl
    • Color: Gray
  • Mounting: #6 x 3/4" Stainless Steel Sheet Metal Screws furnished
  • Screw holes slotted for adjustment
  • Smoke and Draft Control-UL Classified Category H
  • UL 10B Classified on wood doors up to 90 min.
  • UL 10B Classified on metal doors up to 3 hr.
  • UL 10C Classified on wood doors up to 90 min.
  • UL 10C Classified on metal doors up to 3 hr.
  • Air Infiltration Tested

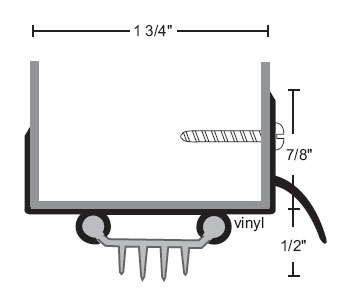

Dimensions
