International Closers 511x3010Sx3010FSPx3010G

• Overhead Concealed Adjustable Spring Door Closer
• Spring tension: ADA 5 lb. to Medium
• Type: 105° Back Stop - no Hold-Open
• This is a complete unit. Includes:

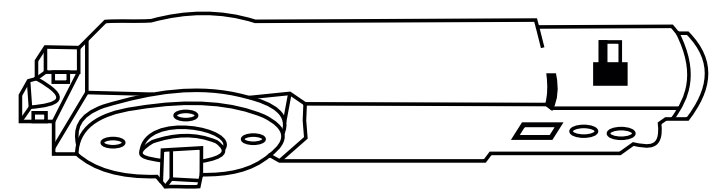

  • Unit Body: 5000-B
  • “S” Type Adjustable Side Loading Top Arm Assembly (1/2” Depth Top Rail) - 3010S

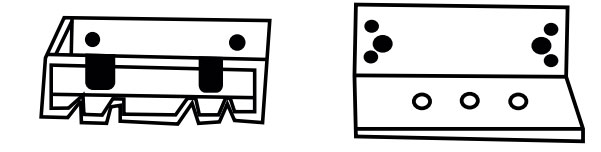

  • Anchor Set - 3010FSP
  • Pivot Set - 3010G
• Suitable for both Center Hung (Double or Single Acting) and Offset Doors.
• All Weather Fluid
• Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Adjustable “S” type side loading, or “A” type, “K” type and “PT” type end loading top arms are available for center pivoted applications.
• Offset “JO” and “VO” type top arms are available for butt hinge or offset pivot applications (may not meet handicap force requirements).
• Adjustable (3010-DP) dual purpose radial ball bearing bottom pivot set is standard for floor or threshold center pivoted installation. 3010-GE and 3010-G bottom pivot sets are available, but must be ordered separately.
• Fits in an aluminum header or transom bar as small as 1 3/4” x 4”.
• Stable hydraulic door check fluid for any climatic operation and constant lubrication.

511 Series Door Closer Parts

	Unit Body	5000-B
	“S” Type Adjustable Side Loading Top Arm Assembly (1/2” Depth Top Rail)	3010S
	“A” Type End Loading Top Arm Assembly (1” Depth Top Rail)	3010A
	“K” Type End Loading Top Arm Assembly (5/8” Depth Top Rail)	3010K
	“PT” Type End Loading Top Arm Assembly (7/8” Depth Top Rail)	3010PT
	“JO” Type Offset Top Arm Assembly Mortised Type (9/16” Depth Top Rail) Aluminum	3010JOxAL
	“JO” Type Offset Top Arm Assembly Mortised Type (9/16” Depth Top Rail) Storefront Bronze	3010JOxDU
	“VO” Type Offset Top Arm Assembly Surface Type (7/8” Depth Top Rail) Aluminum	3020VOxAL
	“VO” Type Offset Top Arm Assembly Surface Type (7/8” Depth Top Rail) Storefront Bronze	3020VOxDU
	Standard Anchor Set	3010FSP
	Standard Pivot Set	3010DP
	Optional Pivot Set	3010G
	Optional Pivot Set	3010GE
