IVES COR52 315AN

Name: IVES COR52 315AN COR Series 52" Bar Coordinator - Black Anodized Aluminum
Brand: Ives
SKU: IVES COR52 315AN
Price: 201.94 USD

IVES COR52 315AN COR Series 52" Bar Coordinator - Black Anodized Aluminum

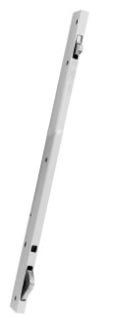

× This image is for a similar product but it will differ in size, color and/or other attributes.

IVES COR52 315AN COR Series 52" Bar Coordinator - Black Anodized Aluminum

Price: $201.94 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

IVES COR52 315AN COR Series 52" Bar Coordinator - Black Anodized Aluminum

COR Series 52" Bar Coordinator
Length of channel: 52"
Use for 62" - 92" opening widths.
Common application for pair of 3'0" doors.
The COR Series Coordinators are designed for use on pairs of doors when one door needs to close before the other.
All COR units function easily. The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
All COR units may not function correctly with swingclear hinges.
All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure.
All COR units are compatible with Flush Bolts.
The COR Series is available in five sizes for variable door opening widths.
The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines.
COR Series Coordinator Channels and FL fillers are made of aluminum.
Optional Filler Bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain clean line.
Optional Mounting Brackets available: MB1, MB2, MB1F, MB2F, MB3F, MB1V, MB2V, and MB3V for other stop applied hardware.
For Openings Where Doors Are Unequal Size: The coordinator length should equal the active door width plus approximately 1/2 the inactive door width. The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops.
Material: Aluminum
Finish: Black Anodized

Installation Instructions

Product Brochure

Ives Company Video

Questions and Answers

Q: My COR is not allowing my inactive leaf with push side overlapping astragal to close first.

A: Astragal must be applied to pull side of active leaf, since placing the stragal on the inside of the inactive leaf will interfere with the active door closing.
