Home > Hinges & Pivots > Pin & Barrel Hinges > Ives > Full Mortise > Electric Through 8 Wire > 83" length > Satin Stainless Steel > IVES 700-US32D-83-TW8

IVES 700-US32D-83-TW8

Name: IVES 700-US32D-83-TW8 83" Full Mortise Pin and Barrel Continuous Hinge with Electric Through-8 Wire - Satin Stainless Steel
Brand: Ives
SKU: IVES 700-US32D-83-TW8
Price: 1207.54 USD

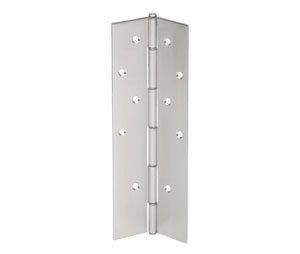

IVES 700-US32D-83-TW8 83" Full Mortise Pin and Barrel Continuous Hinge with Electric Through-8 Wire - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

IVES 700-US32D-83-TW8 83" Full Mortise Pin and Barrel Continuous Hinge with Electric Through-8 Wire - Satin Stainless Steel

Price: $1,207.54 USD

Indicate custom length required (Optional)

Indicate Dutch Door Top & Bottom Net lengths (eg. 42" top, 42" bottom) (Optional)

Indicate Door Material (eg. metal, wood, aluminum, etc...)

Indicate Frame Material (eg. metal, wood, etc...)

Indicate manufacturrer and model of the electrical product being used (eg. Von Duprin EPT2)

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

IVES 700-US32D-83-TW8 83" Full Mortise Pin and Barrel Continuous Hinge with Electric Through-8 Wire - Satin Stainless Steel

Continuous Pin & Barrel Hinge with Electric Through-8 Wire
Length: 83"

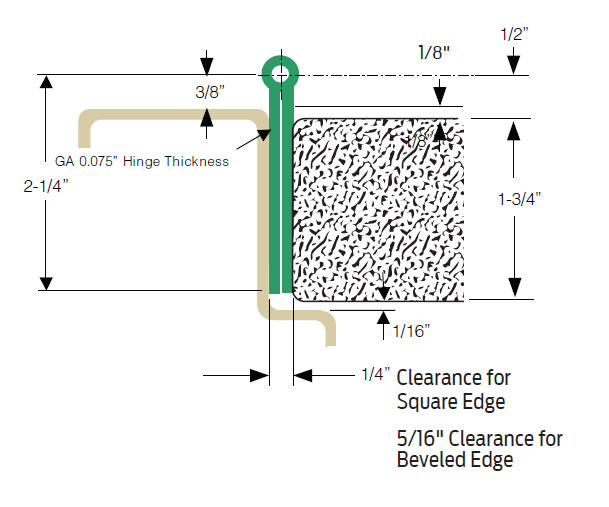

Full Mortise
1/8" inset
1/4" Diameter 304 Stainless Pin with Nylon Split Bearing
Material: 14 Gauge Type 304 Stainless Steel
Finish: Satin
For doors weighing up to 600 lbs.
Use for bevel or square edge doors.
Standard lengths: 83", 85", 95", 120"
Custom lengths are available up to 120". Specify your custom length requirements.
Standard Mounting Hardware: #10 X 1/2" Self Drilling Self Tapping Screws, #10 X 1" Wood Screws
Optional SEC - Security Fasteners Available - Torx Drive
