Hiawatha DE-5CJ 93°UL42-US10B
Hiawatha DE-5CJ 93°UL42-US10B

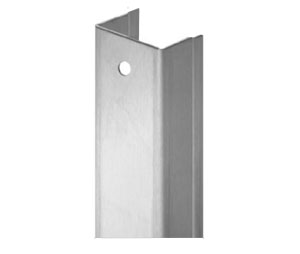

Hiawatha DE-5CJ 93°UL42-US10B 42" Satin Oxidized Oil Rubbed Bronze 93° Mortise - Overlapping Door Edge - Fire Rated
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
184.17 USD
In Stock Ready for Shipment
Select Handing
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
Select Number of Cut-Out
Not Required
1 Cut-Out Required (Add $9.08)
2 Cut-Outs Required (Add $18.16)
3 Cut-Outs Required (Add $27.24)
4 Cut-Outs Required (Add $36.32)
Select Number of Edges for Fire Rating
1 - Edge Fire Rated
2 - Edges Fire Rated (Add $19.80)
3 - Edges Fire Rated (Add $29.70)
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hiawatha DE-5CJ 93°UL42-US10B 42" Satin Oxidized Oil Rubbed Bronze 93° Mortise - Overlapping Door Edge - Fire Rated
Mortise - Overlapping Door Edge
Length: 42"
Angle: 93°
Size: 1-1/4" x 1-3/4"
Material: Bronze
Finish: Satin Oxidized Oil Rubbed
Feature: Inside Edge - overlaps .050 thick door protection plate by 7/16"
Fire rating: UL listed. Specify in the Comments field the edge to be Fire Rated, and select the number of edges form the drop down choices.
ANSI: J208
Handing required
Options:
Cut-Outs: Please fill ou the order form and attach. Custom cut-outs are available. (At the end of your ordering process after payment has been entered the confirmation page will allow you to upload your file.)
Fasteners: Torx and Hex head fasteners are available. Specify wood or metal door for correct fastener selection.
Custom requirements for special sizes and oversize door thicknesses are available. Please contact our sales department for more information.
Product Brochure
Order Form
Dimensions
Click to enlarge image
b
