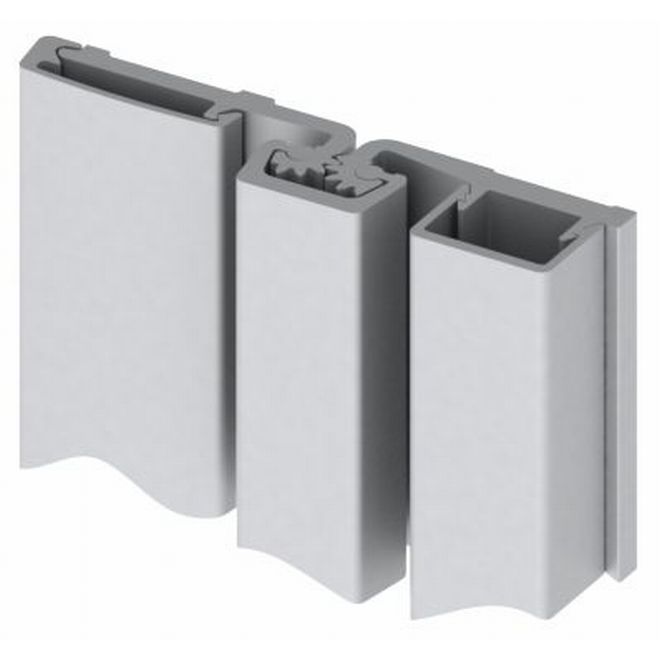

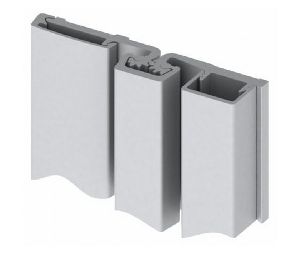

Hager 780-157HD-79-DBA

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

• Hinge Type: Continuous Hinge, Full Surface
• Bearing Type: Continuous Gear
• Height: 79"
• Weight: Heavy Duty
• Grade: Grade 1
• Finish: Dark Bronze Anodized Aluminum
• Base Material: Aluminum
• Application: No Special Preps
• Limited Warranty: Lifetime
• Fire Rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)
• Door Reinforcement: None required
• Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
• Clearance:
  - 1/32" (1 mm) minimum recommended between doors
  - Plus standard lockside clearance
  - Refer to Door and Frame Dimensioning in the General Information section for further details
• Fasteners:
  - 1/4-20 x 1-1/4" Sexbolt (Screw + Post)
  - #12-24 X 11/16" Flat Head Self-Drill Screws
• Application:
  - For surface applications where frame face dimension is limited
  - Security moldings
  - 1/16" (1.5 mm) inset
• Images may not represent actual product and finish
• Manufacturer: Hager
• Security Lock UID: HAG100780157HD79DBA
• Packing & Sold as: Each
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
