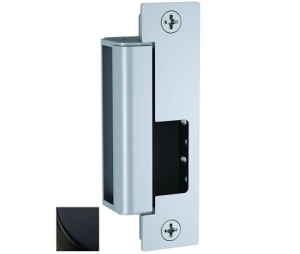

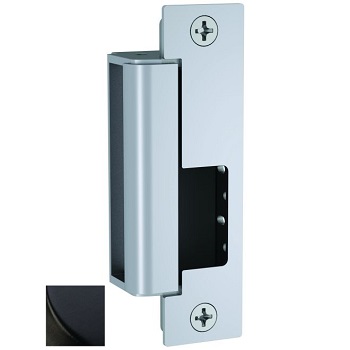

Hes 1500 613E

The most advanced, modular electric strikes that work with every brand of cylindrical or mortise locks designed to work with a 4-7/8" strike plate.

Dynamic
Adjustable integrated shim for changing door conditions.
Field upgradeable options.
Integrated monitoring of latchbolt and/or door position switch.

Flexible
Accommodates all brands of mortise and cylindrical locks.
Dual voltage 12/24VDC.
Field selectable fail safe/fail secure.

Modular
Interchangeable accessories work with both models.
Field serviceable components.
All faceplates are interchangeable between the 1500 and 1600.

Standard Features:

• Electric Strike Body
• Function Field: Selectable (Safe/Secure)
• Operating Voltage: 12VDC/24VDC
• Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
• Use With: Cylindrical and Mortise Latchbolts
• Faceplate Shape: Flat Face, Square Corners
• Frame Depth: 1-3/8"
• Strike cavity height: 3 -1/4"
• Fire Rated: Yes
• Frame Application: Metal or Wood
• Base Material: Bronze
• Finish: Dark Oxidized Satin Bronze
• Use With: Cylindrical and Mortise Latchbolts
• Fire Rated: 3 Hours


  Additional Series Information:

• Tamper-resistant
• Static strength: 1,500 lbs
• Dynamic strength: 70 ft-lbs
• Endurance: 1,000,000 cycles
• Non-handed
• Fully finished faceplate, keeper, case and trim
• Field adjustable integrated shim
• ElectroLynx® connectors
• Interchangeable faceplates and accessories
• Field replaceable springs and actuator
• Item Image may differ from product selected
• Packing & Sold as: Each.
• Note:Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
