- Features:

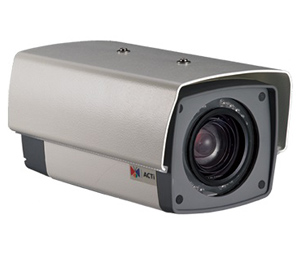

- Model: ACI-KCM5211E
- Product Type: Zoom Box
- Maximum Resolution: 4MP
- Application Environment: Outdoor
- Image Sensor: Progressive Scan CMOS (Complementary Metal-Oxide Semiconductor)
- Day/Night: Yes
- Low Light Sensitivity: Superior
- Mechanical IR Cut Filter: Yes
- IR LED: Yes
- Sensor Size: 1/3.2 "
- Minimum Illumination: Color: 0.1 Lux at F 1.6 (30 IRE, 2400 K); B/W: 0 Lux at F 1.6 (IR LED On)
- Horizontal Resolution (TV Lines): 1650 TVL
- Focal Length: Zoom, f4.7-84.6mm
- Aperture: F1.6-F2.8
- Zoom Ratio: 18x optical
- Horizontal Viewing Angle: 48.9° - 3.6°
- Compression: H.264 (Baseline/ Main/ High Profile), MPEG-4 SP, MJPEG
- Maximum Frame Rate vs. Resolution: 8 fps at 2032 x 1920, 15 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 640 x 480
- Wide Dynamic Range: Advanced WDR (80 dB)
- Digital Noise Reduction: 2D + 3D DNR
- Zoom Application: Camera Installation, Auto Zoom by Event, Manual Operation
- Iris: DC Iris
- Focus: Auto Focus
- Lens Mount: Board Mount
- Multi-Streaming: Simultaneous Dual Streams Based on Two Configurations. Multiple Streams Based on a Single Configuration in 4 Cropped VGA Mode
- Image Enhancement: White Balance, Brightness, Contrast, Automatic Gain Control, Flickerless, Defogging
- Privacy Mask: 4 Configurable Regions
- VMS-based Analytics: Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (Require PC-based or Standalone IVS or ALPR Server)
- Image Orientation: Flip, Mirror
- Audio Type: 2-way, Line-in, Line-out
- Network Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1 x RJ-45 Connector
- Serial Port: 1 x RS-485/RS-422
- Digital Input/Output: 2/2
- Local Storage: MicroSDHC Memory Card Slot (Card Not Included)
- Power Source: DC 12V, PoE Class 3 (IEEE802.3af)
- Power Consumption: 9.12 W (PoE, IR on)
- Environmental Casing: Weatherproof (IP66)
- Mount Type: Bracket, Corner Mount, Pole Mount
- Starting Temperature: -20 °C ~ 50 °C (-4 °F ~ 122°F) within 30 Minutes
- Operating Temperature: -40 °C ~ 50 °C (-40 °F ~ 122 °F)
- Approvals: CE, FCC, IP66, UL (For Optional PoE Injector and Power Adapter)
- Software Development Kit (SDK): Yes
- ONVIF Compliant: Yes, Profile S
- Web Browser: IE 8.0 or Newer, Firefox with VLC, Chrome with VLC
- Warranty: 3 Years
- Extended Warranty: 2 Years
|
