    Home > Wood Doors > Architectural Doors > Primed Hardboard > Architectural Solid Core > 3'0 x 9'0 Architectural Solid Core Primed Hardboard Wood Door


3


PTH-SC3090

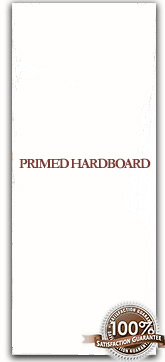

3'0 x 9'0 Architectural Solid Core Primed Hardboard Wood Door


Manufacturer: ABS
Price: $245.84






  Order Options:


7. Specify your Hinge locations (Optional)
8. Specify your Lockset locations (Optional)
9. Specify your Deadbolt locations (Optional)
Comments (Optional)


  Qty:

  Add To Cart


Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
This item ships from MO.

Wood Door
Wood Door
Wood Door
Wood Door
Wood door

ABS features a lifetime warranty on our ARCHITECTURAL SOLID CORE PRIMED HARDBOARD rated commercial wood doors.

Our Architectural particleboard wood doors are built to the highest quality standards as defined by AWI section #1300. This door can be special ordered in all domestic and exotic species of wood. Birch, Oak, Maple, Mahogany, Walnut and Cherry can be ordered directly at www.absupply.net. This door meets or exceeds all architectural specifications for construction and quality standards. These doors feature a fully bonded core. This means the stiles and rails are securely attached to the core with adhesives and then are abrasively planed before veneering. This step works to ensure minimal telegraphing of core parts through veneers. These doors are used in commercial, institutional and residential applications. Factory prefinishing, fully compliant with AWI standards, is available on special order. If your machining requirements exceed those listed above, please click on our "machining sheet" link to help complete your order and contact us directly to the place your order. 1 3/8", 2”, 2 1/4 ” and other thicknesses available on special order. Dutch doors, wicket doors and lead lined doors can also be special ordered.

400 Series Door Closer
Availability: IN STOCK. Ready to ship.
ARCHITECTURAL SOLID CORE WOOD DOOR
CONSTRUCTION Bonded 7 Ply
CORE Bonded particleboard conforming to ANSI A 208.1 1 LD-2

THICKNESS

1 3/4"
STILES 1 3/8" Matching hardwood or softwood. Wider stiles available
RAILS 1 1/2" Mill option. Wider rails available
FACE Primed Hardboard
ADHESIVE Type II (water resistant)
Type I (water-proof) available
FIRE RATING 20 minute - 1 3/4" thick doors only
DOOR DETAILS Lite and louver openings not to exceed 54" in length or 40% of the door. Max 1296" for 20 min label
MAXIMUM SIZES Singles: 4/0 x 10/0
Pairs: 8/0 x 10/0
DE Pairs: 8/0 x 8/0
Wood Door
Wood Door
Contact Information
877-631-9411
Contact Architectural Builders Supply for installation support and information !

CUT SHEET
Wood Door TOP and BOTTOM HORIZONTAL EDGE
2 1/4" minimum solid wood or structural composite lumber, one piece or laminated (before trim)
VERTICAL EDGE
1 9/16" minimum hardwood; solid, laminated or veneered (before trim). Backer or inner ply may be structural composite lumber. Same species visible surface, sanded ease, no visible joints allowed
CORE
Particleboard, ANSI A208.1, grade LD-2
CORE/EDGE INTERFACE
Stiles & rails securely bonded to core, then entire unit abrasively planed before veneering
FACE
1/8" hardboard 60 lb. ANSI A 135.4
LIGHTS, LOUVERS and MOULDING
Same species lumber, or vennered or metal vision frames
TRANSOMS
Bottom horizontal edge runs full width. Matching species lumber or vennered
FIELD TRIM
Width = Max. 1/2" when taken equally from both stiles
Height = Max. 1 1/2" when taken equally from both rails

Cutting Graphic
Cutting Explained
Wood Door
Wood Door ROTARY CUT
The log is mounted centrally in the lathe and turned against a razor sharp blade, like unwinding a roll of paper. Since this cut follows the log's annual growth ring, a bold variegated grain marking is produced. Rotary cut veneer is exceptionally wide. To put it simply, this is the way you peel an apple
Wood Door
Wood Door
Wood Door PLAIN SLICING
The log, or flitch, is mounted with the heart side flat against the flitch table of the slicer and the slicing is done parallel to a line through the center of the log. This produces a variegated figure. To put it simply this is the way meat is sliced at the deli
Wood Door
Wood Door QUATER SLICING
The quarter log, or flitch, is mounted on the flitch table so that the growth rings of the log strike the knife at approximately right angles, producing a series of stripes, straight in some wood, varied on others
Wood Door
Wood Door RIFT CUT
Cut veneer is produced in the various species of Oak. Oak has medullary ray cells which radiate from the center of the log like curved spokes of a wheel. The rift or comb grain effect is obtained by cutting at an angle of 15 degree of the quarter
