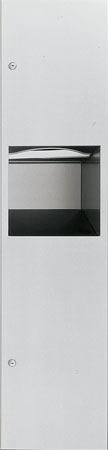

ASI 64676-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit
|
| |
|
|
|
ASI 64676-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit
|
| Part #: ASI 64676-2 |
| |
| Manufacturer: ASI |
| Price: $425.20 |
| |
| |
|
| |
 |
| |
|
|
|
|
| |
| |
 Availability: Ships directly from manufacturer within 2-3 business days.
|
|
| ASI Semi-Recess Mounted Paper Towel Dispenser and Waste Receptacle Unit |
|
- Holds and dispenses 800 standard multi-fold, 600 standard C-fold or 1100 standard single-fold paper towels
- Waste receptacle has capacity of 7 gallons (26.5 liters)
- Satin stainless steel
- Tumbler lock keyed alike to other ASI washroom equipment
- Rough wall opening: 11-1/2" W x 53-1/2" H x 4" D minimum (292mm x 1359mm x 102mm)
|
|
|
| Operation |
|
- Towels are self-feeding until supply is depleted.
- Unit may be reloaded with a partial load in-place and will continue to feed properly.
- Waste receptacle is emptied manually on a cycle determined by maintenance needs.
- Locking door prevents unauthorized access or removal.
|
|
| Installation |
|
- Rough Wall Opening (RWO) required is 11-1/2" W x 53-1/2" H x 4" D minimum (292mm x 1359mm x 102mm)
- Unit is mounted in wall recess with four (4) No 10 self-tapping screws (by others) through mounting holes in cabinet.
- For compliance with ADA Accessibility Guidelines, install unit so that center line of towel dispenser slot is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48" (1219mm) maximum AFF if clear floor forward reach access only is provided.
- For general utility the unit should be installed with its bottom edge 16-3/4" (425mm) AFF.
- Note that bottom of RWO is 3/4" above bottom of unit. SR collar is installed on cabinet prior to mounting in wall recess following procedure described on SR Collar Data Sheet.
|
|
| |
|
| |
